SHANGHAI SUNNY ELEVATOR CO.,LTD A safty elevator environment from sunny
6 Years
| Ask Lasest Price | |
| Brand Name : | SUNNY |
| Model Number : | Freight Elevator |
| Certification : | CE,ISO9001 |
| Price : | $7000~12000 |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 500 Set/ Year |
| Delivery Time : | 15~30 days |

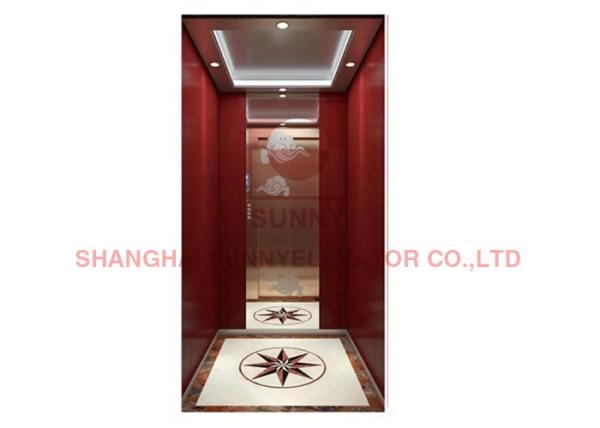

Factory Price Newest 3 Floor Small Lift Platform Home House Elevator
| Machine Room Less | ||||||
| Loading Passenger | Loading Capacity | Speed | Car Size | Shaft(Min.) | Overhead Height | Pit |
| Passenger | (Kg) | (m/s) | W*D*H(mm) | W*D(mm) | H(mm) | H(mm) |
| 3 | 250 | 0.4 | 950*1000*2200 | 1600*1350 | 3600 | 650 |
| 4 | 320 | 0.4 | 1000*1050*2200 | 1650*1400 | 3600 | 650 |
| 5 | 400 | 0.4 | 1050*1100*2200 | 1700*1450 | 3600 | 650 |
Elevator Funtion:
| Travel Funtion | |
| VVVF drive | Motor rotating speed can be precisely adjusted to get sommth speed curve in elevator's start,travel and stop and gain the sound comfort. |
| VVVF door operator | Motor rotating speed can be precisely adjusted to get the more gentle and senslitive dppr machine start/stop |
| Independent Running | The elevator can not respond to outer calling,but only respond to the command inside the car through the action switch. |
| Automatic pass without stop | When the car is crowed with the passengers or the load closed to preset value,the car will automatically pass the calling landing in order to keep maximum travel efficiency |
| Auto adjust door opening time | Door-open time can be automatically adjusted according to the difference between landing calling or car calling. |
| Reopen with hall call | In the door closing process,press reopen with hall call button can restart the door |
| Express door closing | When the elevator stops and opens the door,press door-close button,the door will be closed immediately. |
| Car stops and door open | The elevator decelerates and levels,the door only opens after the elevator comes to a complete stop. |
| Car arrival gong | Arrival gong in the car top anniunces that the passengers arrive. |
| Command register cancel | If you press the wrong floor command button in the car,twice continuous pressing of the same button can cancel the register commend. |
| Direct parking | It completely accords with distance principle with no crawling in the leveling.it greatly enhances the travel efficiency |
| Optional Function | |
| Leveling when power failure | In the normal power failure ,the chargeable battery supplies the elevator power.The elevator drives to the nearest landing. |
| Bell | In emergency conditions,if bell button above car operation panel is continuously pressed,electric bell rings on the top of the car. |
| Anti-nuisance | In the light duty load,when three more commands appear,in the order avoid the unnecessary parking.all the registered calling in the car will be cancelled. |
| Open the door in advance | When the elevator decelerates and enters into door open zone,it automatically opens the door to enhance the travel efficiency. |
| On-duty peak service | Within the preset off-duty period,the elevators are continuously clispatched to top floor in order to satisfy off-duty peak service. |
| Door open time extending | Press special button in the car,the elevatordoor keeps open for certain peroid time. |
| Door-opening re-leveling | When the elevator door opens and leveling flutuation occurs due to change of the car load,the system automatically runs the elevator to leveling position by its own leveling speed under the conditions of door-opening. |
| Voice Announcer | When the elevator normally arrives,voice announcer informs the passengers about the relevant information. |
| Operation box for the disabled | It is convenient for the wheelchair passengers and those who have visual disorder |
| IC card control funtion | All (Partial) landings can only input car commands though LC card after the authorization |
| Camera funtion in the car | The camara is installed in the cabin to monitor the carbin conditions |
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements.
Configuration is not only for wire rope and rated load, but also
considered the size of the traction, as a result, the tensile
strength of wire rope is greater than the weight of the lift. The
safety factor is equipped with more than four wire rope. So it
won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator
running?
If it occurs, the elevator will automatically stop due to the
electrical and mechanical safety device. In case of power
failure,elevator brakes will automatically taken. In addition, the
power supply departments such as planned outage, prior notice are
also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of
elevator will automatically restart without any danger. With anti
clamping switch, once the gate touched, this switching action make
the elevator unable to be closed and even reopened. In addition,
closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the
(tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily
proportional to the operation complexity. Therefore, escalators
designed by us apply an integrated structure, so that the equipment
is more precise and more efficient and allows easier and more
convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
|
|
